ph8 outdoor high brightness rental LED Display

FOB Reference Price:Get Latest Price
$1.00 - $900.00 / Square Meter | 1 Square Meter/Square Meters 8mm smd outdoor led screen stage use/outdoor rental led screen (Min. Order)
Support Sea freight
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Model Number:
JEKAZ-OUTDOOR-P8-640x640 rental
8mm smd outdoor led screen stage use/8mm outdoor rental led screen
Module size:
Cabinet material:
die-casting aluminum cabinet
LED chip:
Cree + Nichia + Epistar + Opto + Silan+Nationstar
Power supply:
Control way:
Syn control with wires online/Asyn remote WIFI/3G/USB
Church/hotel lobby/club/auditorium/meeting/show room/shopping center
Life span:
Display Function:
Screen Dimension:
Customized Size
Tube Chip Color:
Supply Ability
Supply Ability:
3000 Square Meter/Square Meters per Month 8mm smd outdoor led screen stage use/outdoor rental led screen
Packaging & Delivery
Packaging Details
Wooden case package for permanent fixed installation video led screen wall and flight case package for mobile rental event LED display video wall. JekazSuper slilm P8 Outdoor Stage led screen/8mm outdoor Rental led screen for Advertising/events
Lead Time :
15~20 working days
JEKAZ  Outdoor Rental LED Screen Series Over review



Outdoor rental screen mainly use for outdoor events, stage background, or other kinds live show. Portable and practical always bring customer convenient and comfortable experience.



•Fast assemble & Disassemble.
•High brightness & Waterproof.

•No Ghosting, no flicker.
•Ultra slim & Light weight.
•Seamless & Flatness.


Mainly applications:

1 Stage Entertainment: Music shows, concert, bands live shows, gala shows etc.

2 Events: Conference, product launches, exhibitions, fashion shows, weddings, company opening ceremony etc.

3 Rental advertising: Shopping mall, super market, restaurant etc.

Pixel Configuration ( 3in1 SMD )3535
Pixel pitch(mm)8
Module dimensions W*H(mm)320 *160
Module pixels  W* H(Pixels)40*20
Cabinet Dimensions W*H(mm)640x640
Pixel density per sqm(Pixels)15625
Cabinet weight(kg)8.5
Driving Type(scan)1/4


Refresh Rate(Hz)≥2400
Horizonta/Vertical Viewing Angle(°) 140/140
 AC Input Operating Voltage(V)   110V/220V±15%
 AC Input Frequency(Hz) 50/60
 Storage Temperature(℃)-40~+60
 Operating Temperature(℃)-10~+40
Storage Humidity/Operating Humidity(RH)10%~90% / 10%~90%
 IP rating (Front/Rear)IP65
 Lifetime Typical Value/MTBF(hrs)100000/10000
Operating systemWindows 2000 / Windows Xp / Windows 7/Windows 8/Windows 10 and more
Accepting signal with video processorPAL/NTSC/SECAMDVI,HDMI,VGA,SDI,HD-SDI,DP,AV,S-VIDEO
More Options: P3 576x576mm  P4 512x512mm   P5 640x640mm  P6.25 500x500mm/500x1000mm etc.
Detailed Images

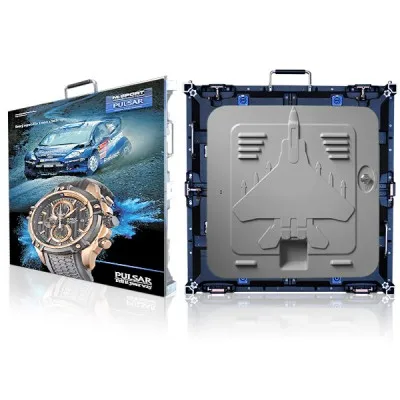

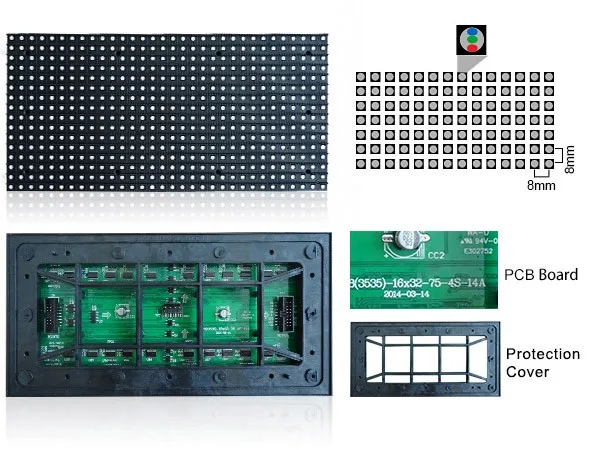

                                             LED Modules                                 LED Cabinets



LED Display in the factory to do Aging test

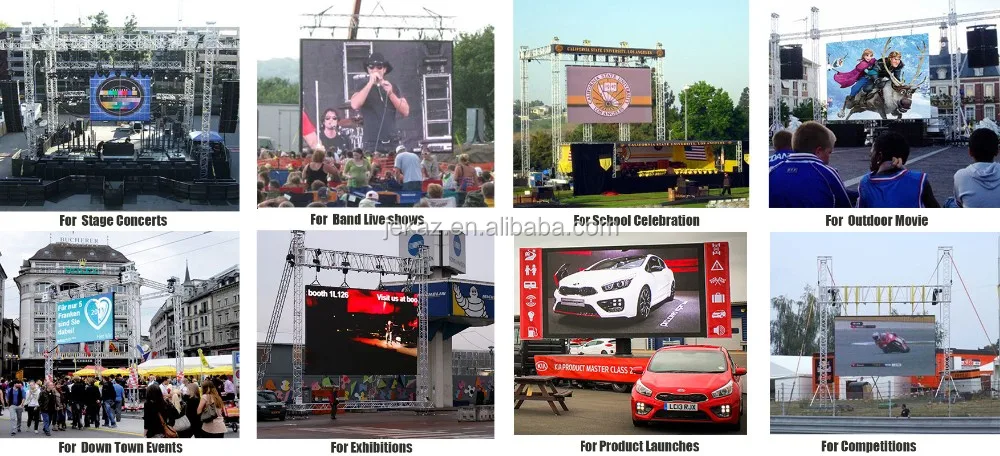

LED Displays in the applications

Control System

Kindly Note: Jekaz LED rental displays project sychronous control system for the reference only. Projects need asychrounous control, such as Wifi/3G/USB and more also supported.


Packaging & Shipping


 Flightcase for rental LED screens


Woodencase for Fixed LED screens


Shipping by Sea/Air/Express are available

Company Info

About Us:


Shenzhen Jekaz Technology Co.,LTD is a professional LED video wall & display screens manufacturer since 2008. With 8 years development,Jekaz has made great progress on diverse LED display project one-stop service from designing, manufacturing, sales, installation to technical support. Focus on researching and manufacturing, our main advantages are Rental & Fixed LED display,curve LED display, transparent LED display and customized irregular shaped LED display.
"Provide the value and make the product valuable." Jekaz formed our own culture, considerate and positive working attitude. And established a systematic quality control procedure, from material purchasing to products research and development, to manufacturing, testing,packing and shipment. Fully implement strict ISO9001-2000 quality management. Qualified with CE, RoHS, CCC, FCC, EMC and other related certifications, our products now had exported to more than 80 countries all over the world and got star feedback from worldwide customers.

Every member in our team has been well-trained in sales & marketing. Every business starts from trust because every goal set by our company is finished with full responsibility and care. Our mission is to earn your trust with quality and service. Your questions will be responded in 24 hours by our professional sales team .


Why Choose Jekaz

Outstanding Performance & Quality:
Supported by advanced technology and professional team, Jekaz come out world-class standard LED Display, featured with beautiful image, durable stability, low power consumption, wide viewing angle and nice protection rating. .Full automatic production to control our high quality, best color .Consistency and get better performance.
•Energy saving, low power consumption and long lifespan 100,000 hours (about 10 years).
•Jekaz guarantee that the products we provide are brand new, complete and unused.
•Good heat dissipation capability and high waterproof because of the unique design of vent fan
•Jekaz quality control throughout every process from materials-production- test-package-delivery.

Frank and honest:
Jekaz sales-team promise to be frank and honest in a proffessional way on how to choose the most suitable products according to the installation site. Also respect your requirements and offer the most suitable solution accordingly.
